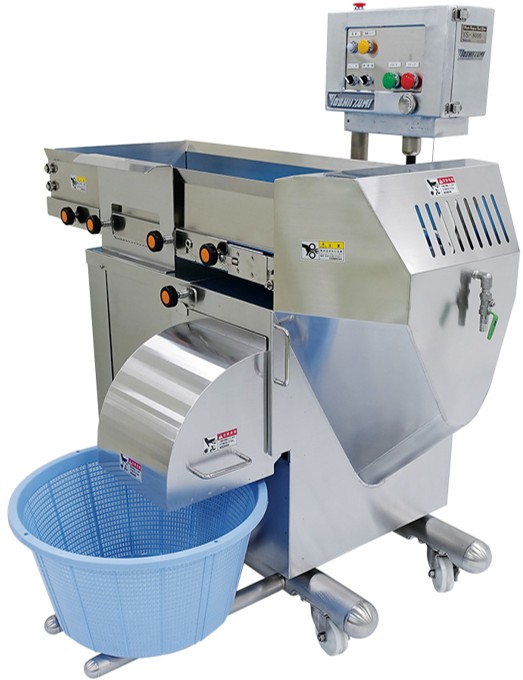

The Yoshiizumi YS-8000 Type Dicer is an industrial vegetable dicing machine designed to process a wide range of vegetables into uniform diced pieces in a single feeding cycle. The machine uses a 3D cutting mechanism to cut raw materials in three directions, with finished product sizes available from 3–15 mm. It is suitable for processing ingredients such as onions, carrots, potatoes, cabbage, and bell peppers.
Key Features of the Yoshiizumi YS-8000 Type Dicer
- Dicing in a single feeding cycle: The 3D cutting mechanism cuts the raw material in three directions to produce diced pieces in a single pass.
- Multiple cutting sizes: Finished product dimensions from 3–15 mm can be selected by changing the appropriate blade assembly.
- High processing capacity: With a throughput of 800–1,000 kg/h, the YS-8000 is suitable for high-volume industrial vegetable processing.

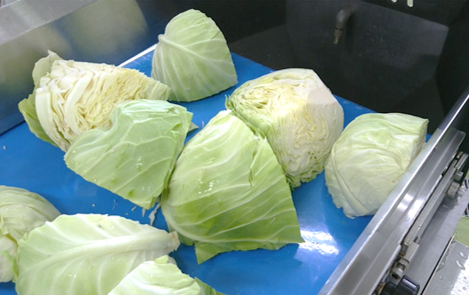

- Large cutting drum: The cutting drum measures Ø400 × 150 mm in depth, allowing easy loading of half a cabbage or a 2L-sized onion.
- Flexible speed adjustment: The machine provides 6 speed levels, allowing the operator to select a suitable cutting speed according to the characteristics of each raw material.
- Three independently controlled motors: Three motors are controlled independently by inverters, with separate drive systems for each cutting assembly. This configuration supports high-volume processing with high speed and torque.
- Easy-to-remove blade assemblies: The blade assemblies can be removed conveniently for cutting size changes, cleaning, and maintenance.

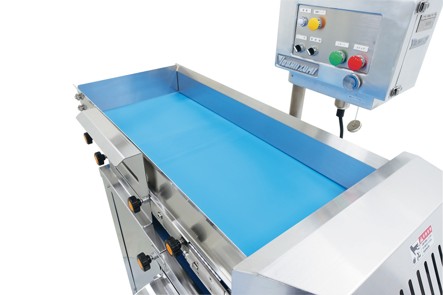

- Operator-friendly design: The machine is equipped with a feed conveyor, casters, and a basket support at the discharge outlet, facilitating operation and product collection.

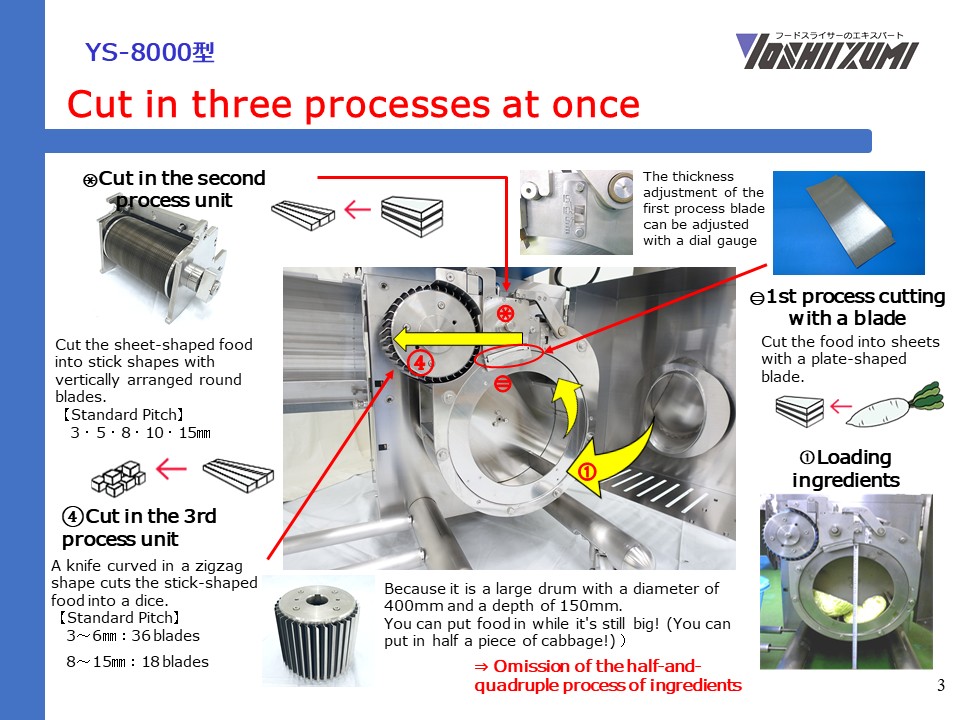

Cutting Principle of the Yoshiizumi YS-8000 Type Dicer
The Yoshiizumi YS-8000 Type Dicer uses a 3D cutting mechanism, in which the raw material is sequentially cut in three directions to produce diced pieces in a single feeding cycle.
Applications of the Yoshiizumi YS-8000 Type Dicer
The Yoshiizumi YS-8000 Type Dicer is suitable for dicing a wide range of vegetables for industrial food processing applications. Depending on the characteristics of the raw material and the required finished product dimensions, operators can select the appropriate cutting size and processing speed.
- Onions / Shallots
- Carrots
- Potatoes
- Cabbage
- Daikon Radish
- Bell Peppers
Cutting Sizes of the Yoshiizumi YS-8000 Type Dicer
The Yoshiizumi YS-8000 Type Dicer supports multiple cutting sizes from 3–15 mm. The finished product dimensions can be changed by installing the corresponding blade assembly, allowing the machine to accommodate different processing specifications.
Standard cutting sizes: 3 mm | 5 mm | 8 mm | 10 mm | 15 mm

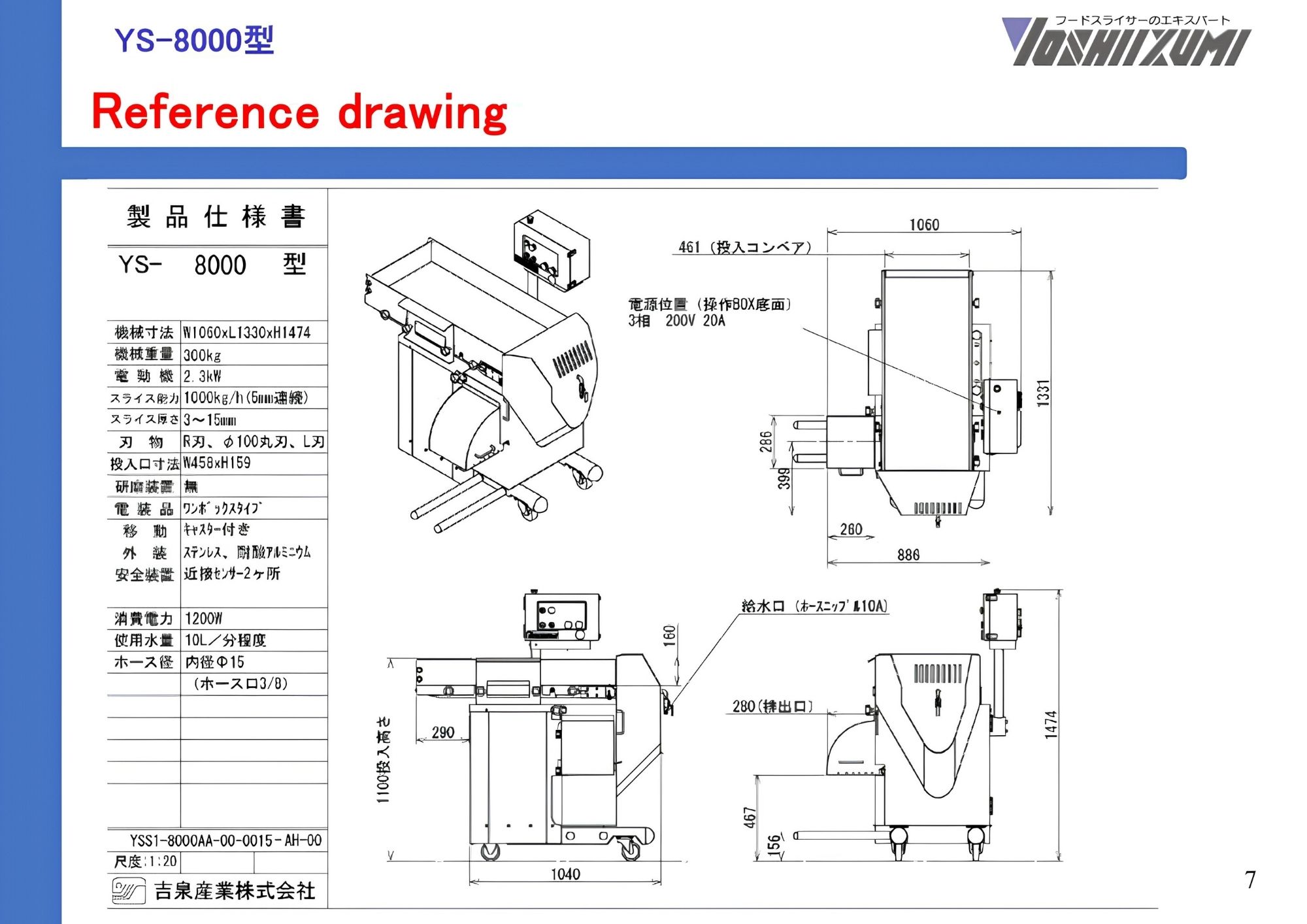

Technical Specifications of the Yoshiizumi YS-8000 Type Dicer
| Specification | Details |
| Model | YS-8000 |
| Machine Dimensions | W1060 × L1330 × H1474 mm |
| Machine Weight | 300 kg |
| Motor Power | 2.3 kW |
| Processing Capacity | 1,000 kg/h (continuous cutting at 5 mm) |
| Cutting Size | 3–15 mm |
| Feed Opening Dimensions | W458 × H159 mm |
| Power Supply | 3-phase, 200 V, 2,300 W |
| Mobility | Casters |
| Power Consumption | 1,200 W |
| Safety System | Sensor-based circuit interruption |

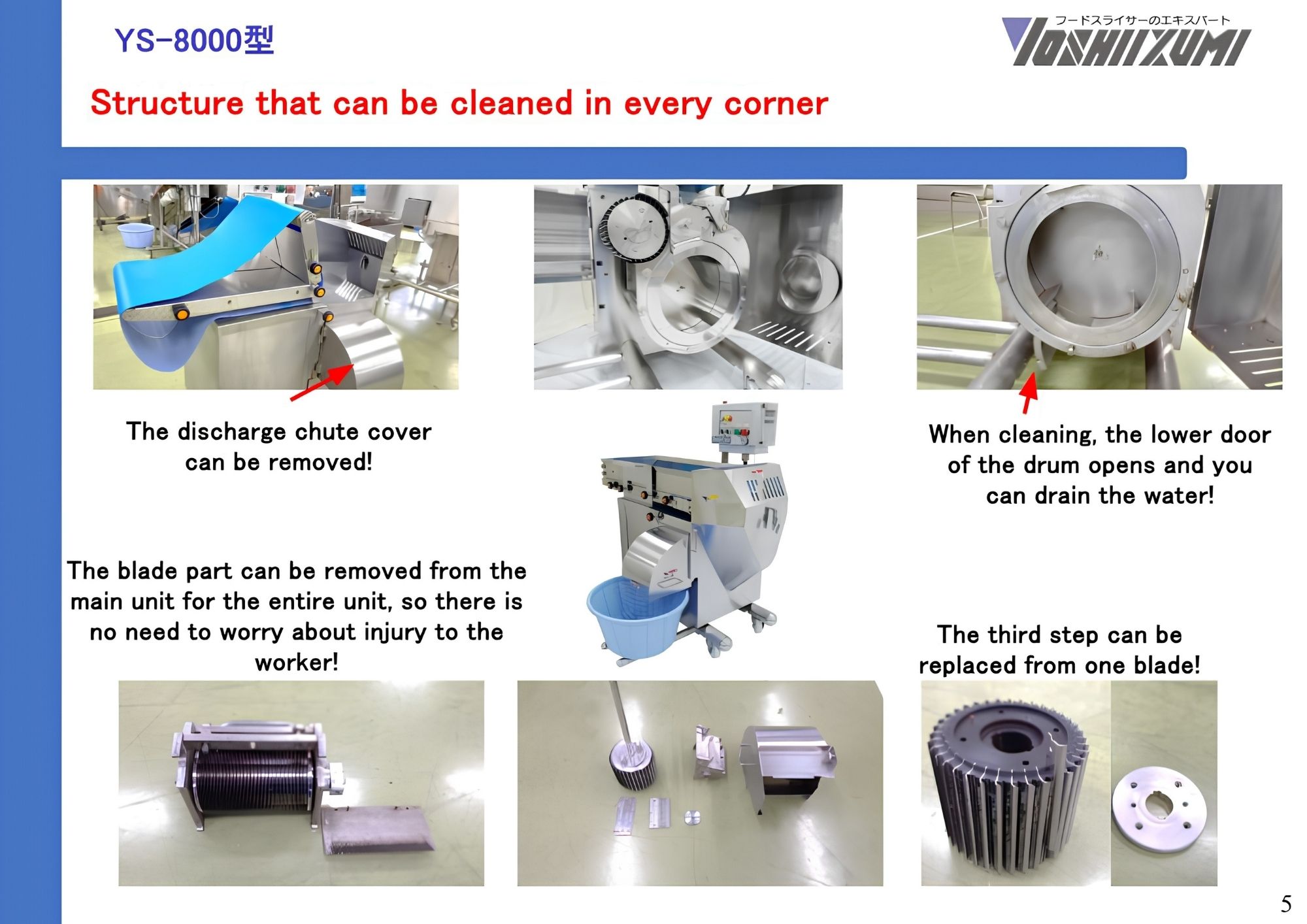

Easy Cleaning and Maintenance Design
The Yoshiizumi YS-8000 Type Dicer is designed to facilitate routine cleaning and maintenance. Components involved in the cutting process can be removed, allowing operators easier access for cleaning after operation.
- Easy drainage during cleaning: The lower section of the cutting drum can be opened to allow cleaning water to drain efficiently.
- Easy-to-clean discharge chute: The discharge chute cover can be removed for convenient cleaning.
- Removable blade assemblies: The blade assemblies can be removed from the machine body for easier cleaning and maintenance.
- Convenient blade maintenance: Individual blades in the third cutting stage can be replaced separately.
Dicing Applications in Food Processing
With its ability to produce diced vegetables in multiple sizes, the Yoshiizumi YS-8000 Type Dicer can be used for ingredient preparation in a variety of food products, including:
- Gyoza, steamed buns, and other products containing vegetable fillings
- Okonomiyaki and other products using finely cut cabbage
- Hamburgers and meat products containing mixed vegetables
- Retort curry
- Salad dressings and sauces containing finely diced vegetables
Real-World Applications of the Yoshiizumi YS-8000 Type Dicer
Yoshiizumi YS-8000 Type Dicer – 5 mm Onion Dicing
Yoshiizumi YS-8000 Type Dicer – Sweet Potato Dicing
Yoshiizumi YS-8000 Type Dicer – 3 mm Cabbage Dicing
Yoshiizumi YS-8000 Type Dicer – Daikon Radish Dicing
