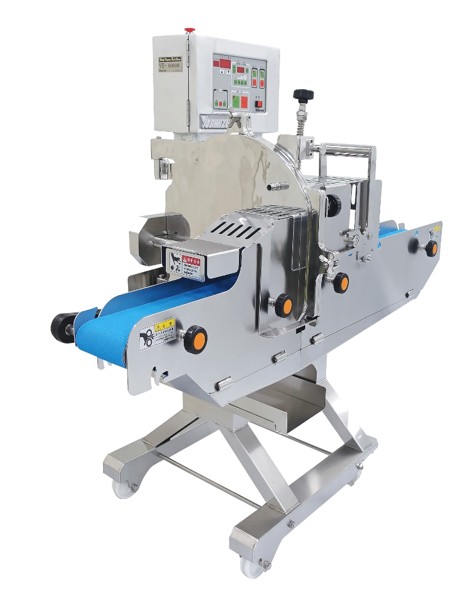

Yoshiizumi YS-6000W Multifunctional Vegetable Slicer

The Yoshiizumi YS-6000W is a multifunctional industrial vegetable slicer designed for slicing, dicing, and julienne cutting. The cutting thickness can be adjusted in 0.1 mm increments, making the machine suitable for a wide range of industrial vegetable processing applications.

Key Features of the Yoshiizumi YS-6000W Multifunctional Vegetable Slicer

• Clean Cutting with Minimal Product Damage: The high-speed rotating curved blade performs a pull-cutting motion, helping produce clean and smooth cut surfaces while minimizing damage to the raw material.
• Multiple Cutting Configurations: Different cutting attachments and blades can be installed to perform slicing, dicing, and julienne cutting, making the machine suitable for various food processing requirements.
• Precise Cutting Thickness Adjustment: The cutting thickness can be set through the control panel in 0.1 mm increments, allowing operators to conveniently adjust the finished product dimensions according to different processing requirements.
• Stable Product Feeding: The product-holding mechanism and upper conveyor adapt to the shape of the raw material, helping minimize movement during cutting and maintain consistent cutting results.
• Easy Disassembly and Cleaning: The main components can be removed without tools, except for the blade assembly. The mesh conveyor also facilitates cleaning and sanitation.

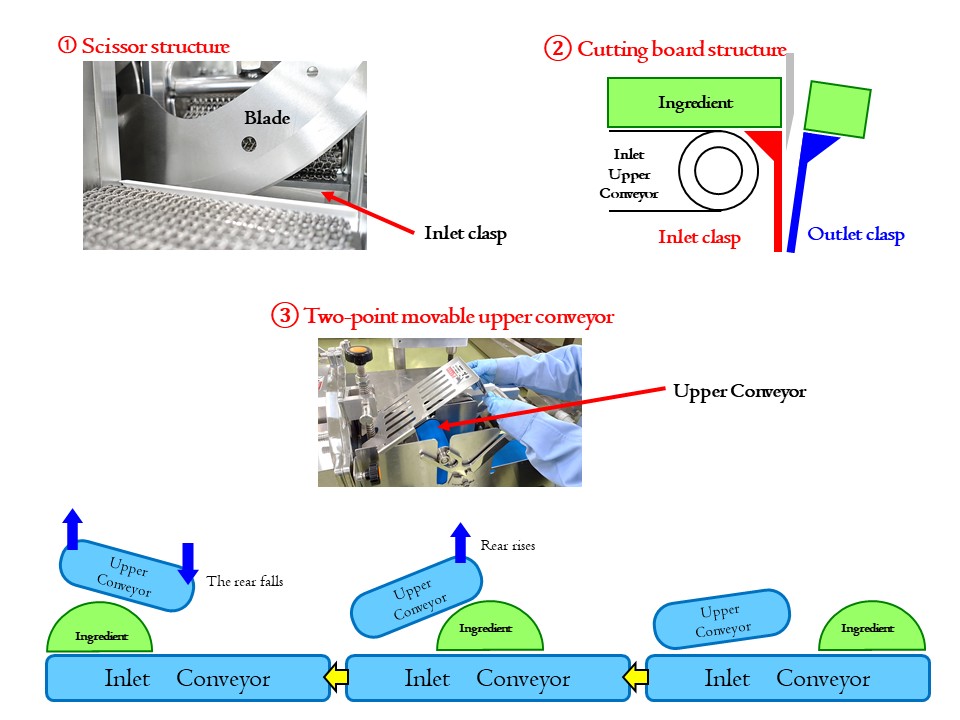

Cutting Principle of the Yoshiizumi YS-6000W Multifunctional Vegetable Slicer

The Yoshiizumi YS-6000W achieves clean and consistent cutting performance through the combination of three main mechanisms:

• Scissor-Type Cutting Mechanism: The rotating blade passes closely along the infeed guide, creating a scissor-like cutting action that helps produce a clean cut surface while minimizing crushing or bruising of the raw material.
• Product Support Mechanism: At the cutting point, the raw material is firmly supported by the infeed and discharge guides, functioning similarly to a cutting board when manually cutting with a knife. By stabilizing the product as the blade passes through, the mechanism helps improve cutting accuracy and consistency.
• Upper Conveyor for Product Stabilization: The upper conveyor can be raised or lowered independently at both ends to conform to the shape of the raw material. Similar to using one hand to hold an ingredient while cutting with a knife, the conveyor helps minimize product movement and contributes to cleaner and more uniform cuts.

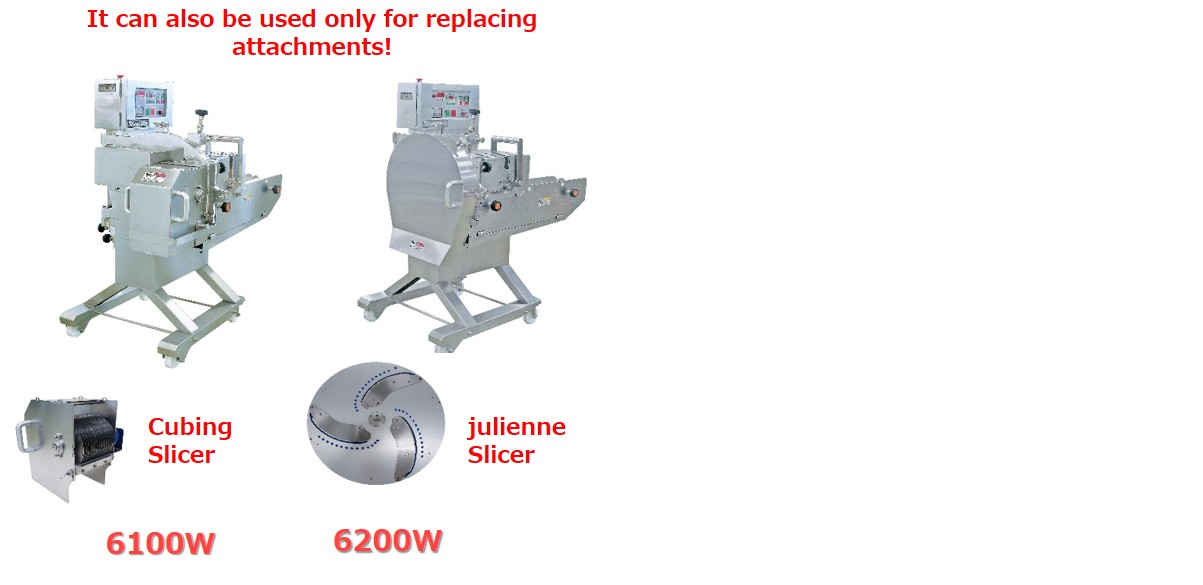

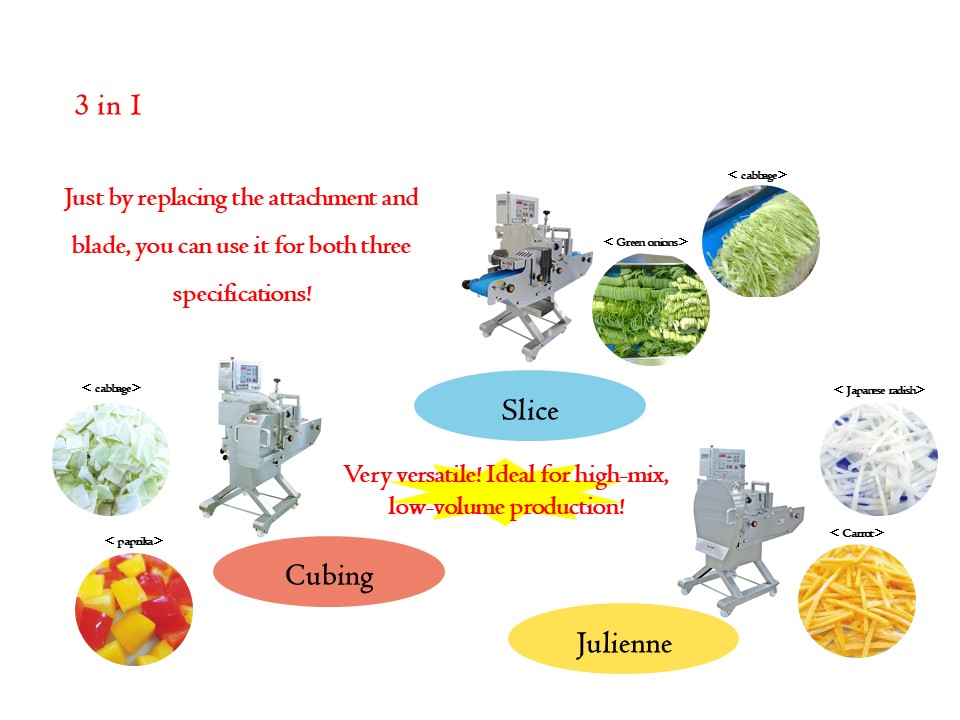

One Machine – Multiple Cutting Configurations

The Yoshiizumi YS-6000W Multifunctional Vegetable Slicer can be configured with different cutting blades and attachments to meet various food processing requirements. Based on the main machine configuration, operators can switch between slicing, dicing, and julienne cutting.

• YS-6000W – Slicing: Uses a rotating blade to produce clean, uniform slices, with the cutting thickness adjustable according to product requirements.
• YS-6100W – Dicing: Equipped with a dedicated dicing blade assembly to perform cutting in two directions, producing cubed or diced pieces during the feeding process.
• YS-6200W – Julienne Cutting: Uses a dedicated julienne cutting assembly to produce uniform strips according to the required dimensions.

Applications of the Yoshiizumi YS-6000W Multifunctional Vegetable Slicer

The Yoshiizumi YS-6000W is suitable for processing a wide range of vegetables and can be configured for different cutting applications according to specific processing requirements:

• Slicing: Green onions, cabbage, daikon radish, carrots, bell peppers, and other suitable vegetables.
• Dicing: Pickled vegetables, lettuce, and other ingredients compatible with the dicing attachment.
• Julienne Cutting: Carrots, cabbage, and other vegetables suitable for the julienne cutting attachment.

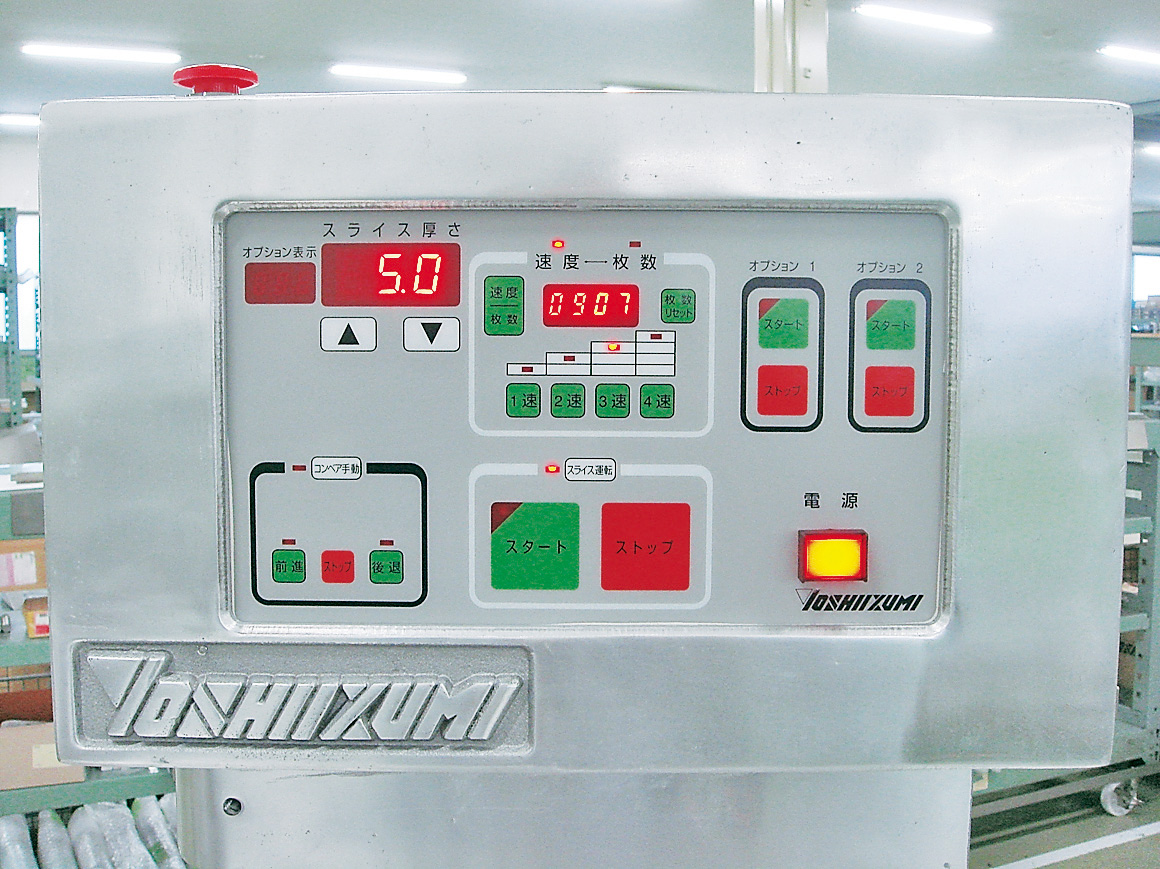

Cutting Thickness Adjustment

The Yoshiizumi YS-6000W Multifunctional Vegetable Slicer allows operators to adjust the cutting thickness directly from the control panel in 0.1 mm increments, providing precise control and flexibility when changing finished product dimensions according to different processing requirements.

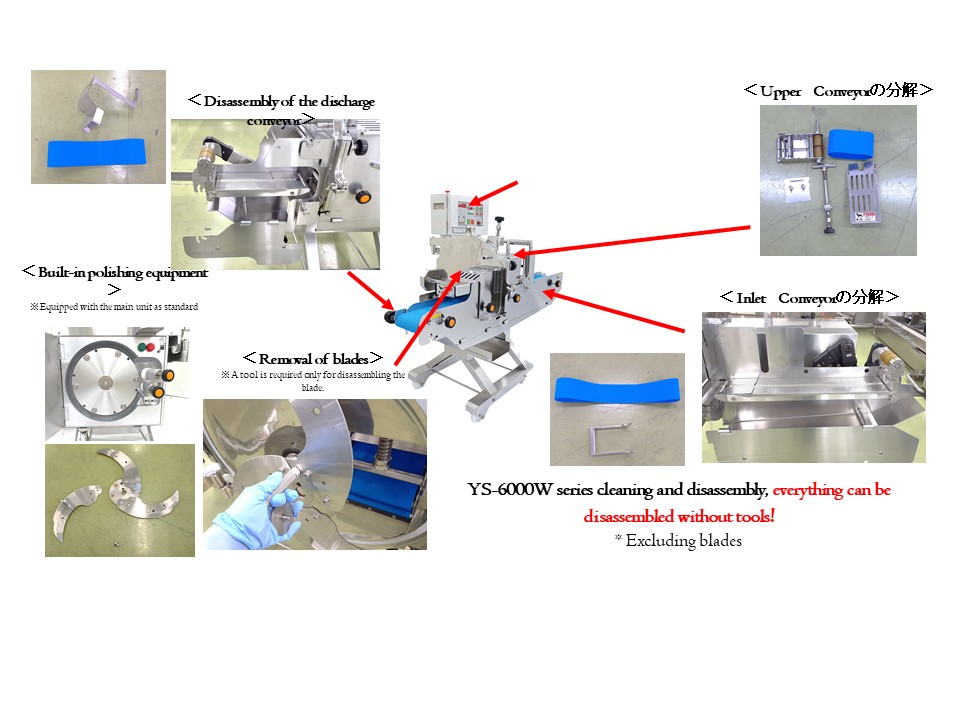

Easy Cleaning and Component Removal

The main components of the Yoshiizumi YS-6000W Multifunctional Industrial Vegetable Slicer, including the infeed conveyor, upper conveyor, and discharge conveyor, can be removed for cleaning without the need for tools. The blade assembly requires tools for removal and installation.

The YS-6000W is also equipped with an integrated blade sharpening unit mounted on the machine body, providing convenient blade maintenance during operation.

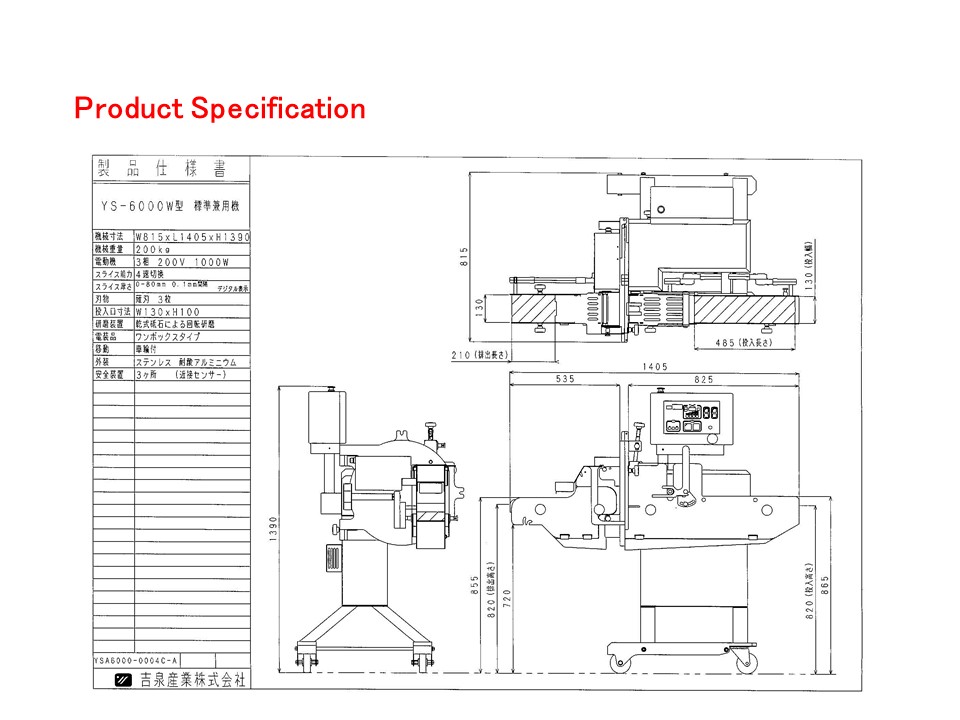

Technical Specifications of the Yoshiizumi YS-6000W Multifunctional Vegetable Slicer

Specification	Details
Model	YS-6000W
Machine Dimensions	W815 × L1405 × H1390 mm
Machine Weight	200 kg
Power Supply / Motor Power	3-phase, 200 V / 1,000 W
Slicing Mode Configurations	4 configurations
Slicing Thickness	0–80 mm, adjustable in 0.1 mm increments with digital display
Number of Blades	3 blades (standard)
Feed Opening Dimensions	W130 × H100 mm
Blade Sharpening System	Dry grinding wheel sharpening
Electrical Control Cabinet	Fully enclosed type
Mobility	Casters
External Construction Materials	Stainless steel and corrosion-resistant aluminum
Safety System	3 safety positions with proximity sensors



Real-World Application Video

This video demonstrates the Yoshiizumi YS-6000W Multifunctional Vegetable Slicer slicing lemons. The product-holding mechanism works together with the rotating blade to produce consistent slices while minimizing damage to the raw material.

Explore more food processing machine application videos on Hason Foodtech YouTube.

Related Product: Explore the Yoshiizumi YS-8000 Type Dicer for additional high-capacity dicing applications.
